'Night Light' circuit, reed switch with magnetic fly circuit, color mixer circuit with RGB and switches
The frog in this drawing lights up when a fly with a hidden magnet covers a reed sensor soldered to a 2-Pin Adapter Circuit Scribe Module . An example of adding custom electronics to the Circuit Scribe system.
A colorful chameleon changes hue controlled by three switch modules. An experiment in color mixing with an RGB LED.

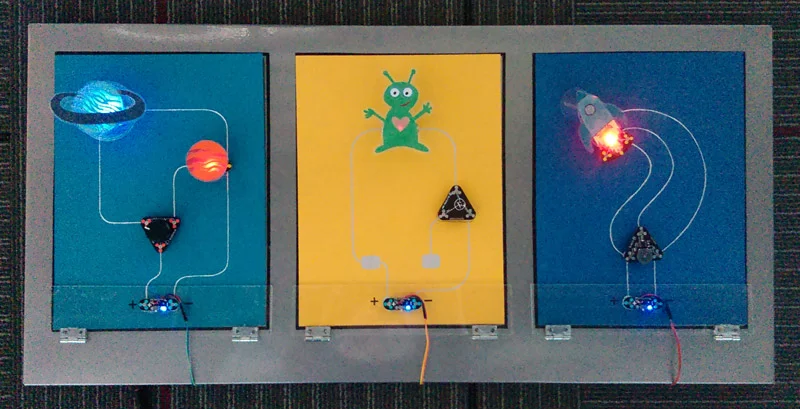

This drawing uses a Circuit Scribe RGB module underneath the spaceship with two channels connected to outputs on the Circuit Scribe Blinker module - creating a flashing, color changing light that looks like fire. Blast off!
The alien't heart lights up when you complete the circuit. Uses the NPN transistor module. Based on the touch sensor example from the Circuit Scribe workbook.
